Consultant - User manual for Racks

Are you having a headache because the goods in your warehouse are messy, not scientific?
Are you looking for a solution to increase your warehouse's storage capacity, but the budget does not allow you to invest more in warehouse space?
Here we will give you the option to use the warehouse shelf in the most optimal way to upgrade your current warehouse more professional modern, solve the problem of storage difficulties. goods! A reasonable racking system will increase the storage capacity of goods, take advantage of warehouse heights, help you manage the warehouse in the most efficient and logical way!

There are many types of store shelves and are classified according to the demand and the tonnage of goods. In this article, we will analyze the features and usage characteristics of the three main types of storage shelf so that you can easily select the product suitable for your needs.

1- Heavy-duty Racks:
esigned for heavy duty warehouses (1000Kg-5000Kg / 1 storey), pallets can be used for storage and for storage. Heavy load racks are divided into many categories such as: Driver in, Selective racks, Very Narrow Aisle Rack ... We would like to introduce two types of racks. Pallet to the most popular pallet:

* Driver-in racks: Use the Drive-in shelf system to save maximum warehouse space without losing space for multiple paths.
Drive-in racks are designed with store racks by rails to ensure that the pallets are stacked side by side in the depth of the rails supported by forklifts. Such a rails system can accommodate 2 to 8 pallets or more. Each shelf system can be designed in different dimensions depending on the size of the goods, the needs of the customer and the height of the warehouse.

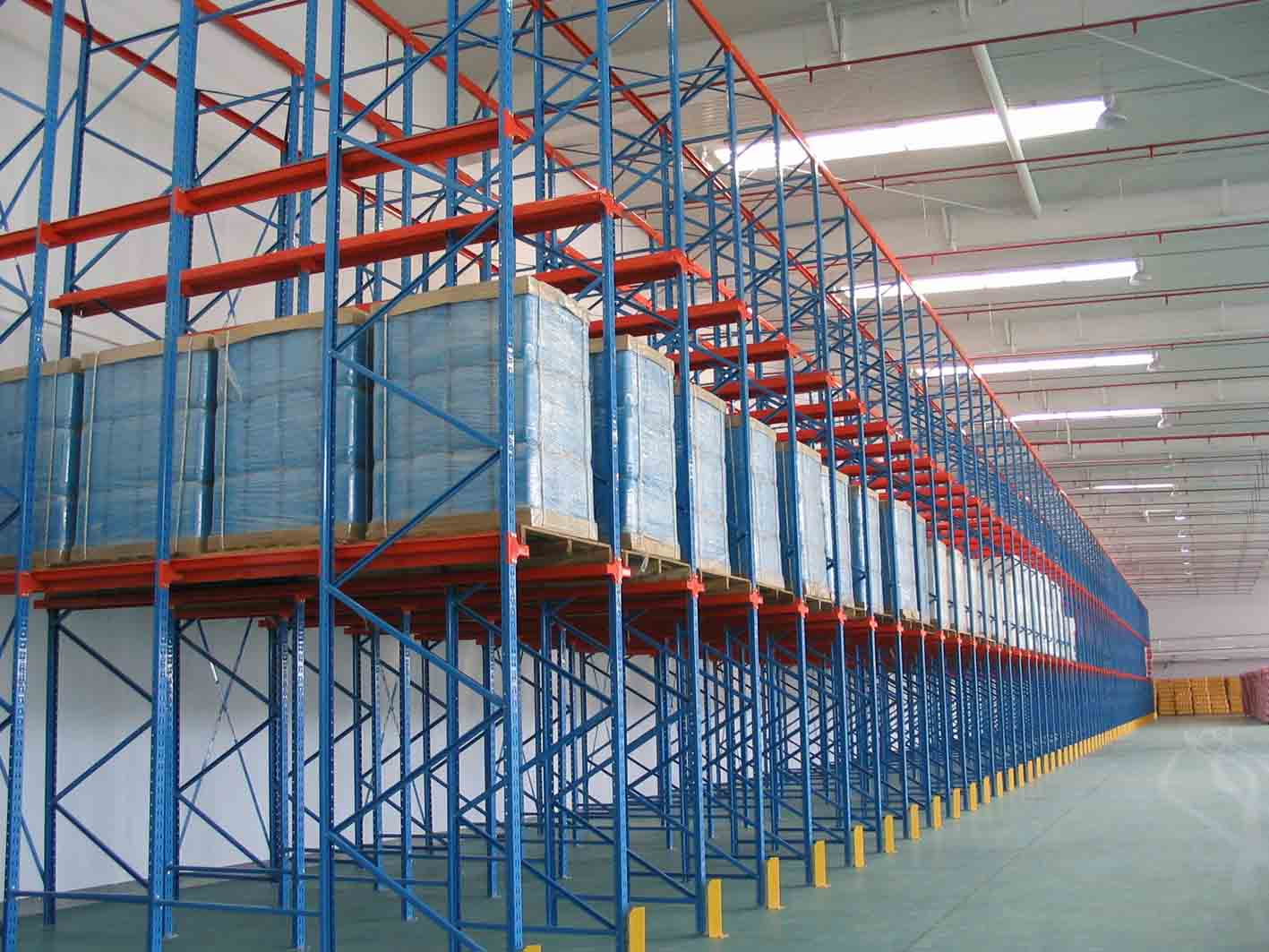

Driver-in rack

Shelf is designed by the way of assembly bulong, so it is easy to move and change the distance between floors to suit the needs of use, the shelves have a tonnage of each floor from 500Kg to 5000kg depending on the needs of use. This is the FILO type pallet: the pallets are imported beforehand, so pallets are suitable for pallets containing the same product, long shelf life, products are usually applied to warehouses. , port, factory, industrial zone, ...

Selective Rack: Use Selective rack to improve mobility in cargo storage, front cargo can be retrieved before or after all, get goods easily, quickly save time, increase cargo management capacity. flower.
Material: Steel powder coated.
Shipping weight on one shelf: from 1000Kg- 6000Kg, or higher depending on requirements.
Maximum height:
The height of the shelf can reach 10m, shelves depth from 800 mm to 2000 mm, can use 2 - 4 pallets to row / 1 shelf.

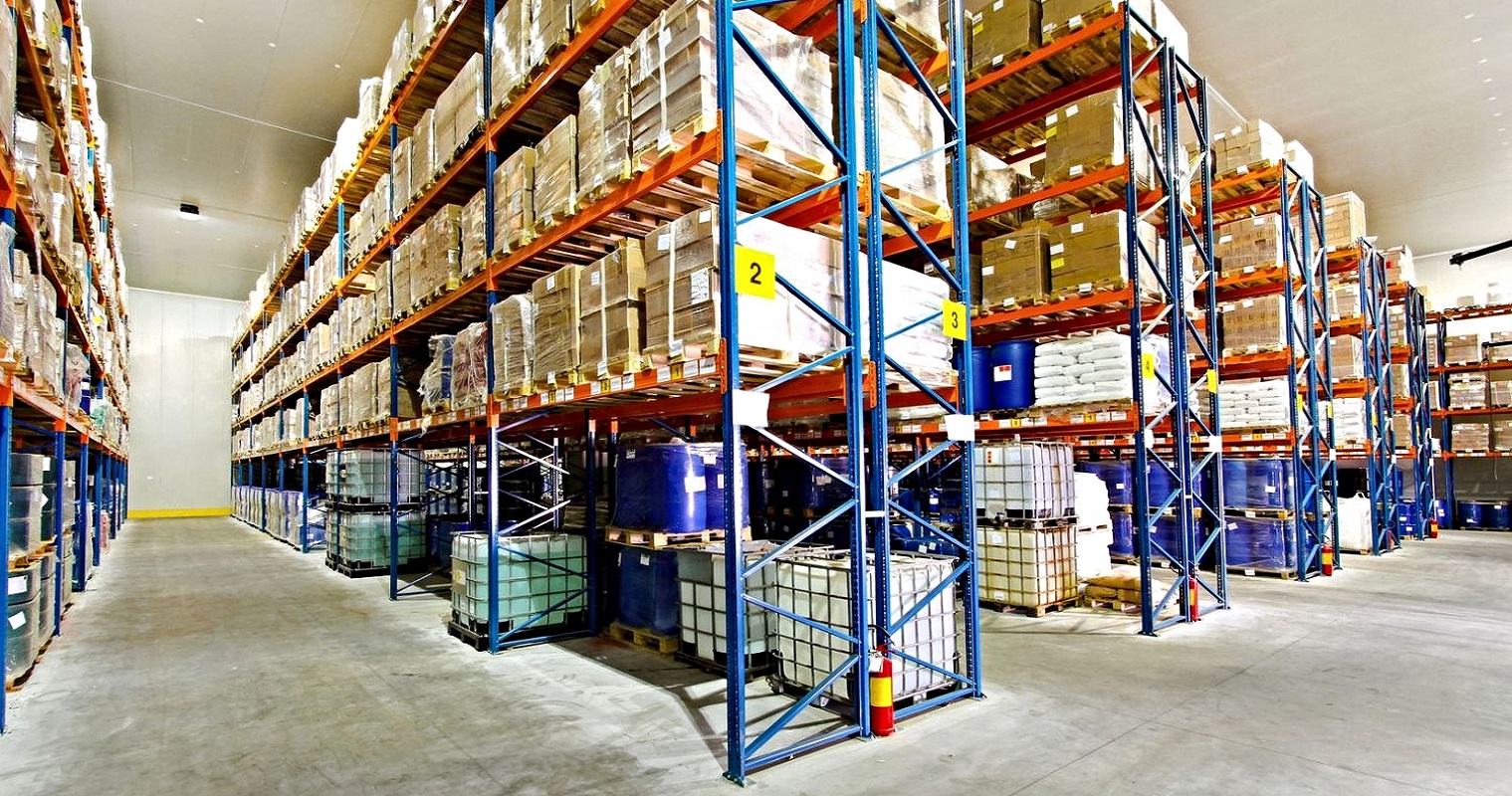

Selective Rack

This is a type of shelves for short or regular reserves, Goods for export-import business, Note: This type of shelf uses the speed of import and export fast and the principle. It should use this type of shelves when the demand for the import of goods fast, the goods of the same type, short shelf life. Commonly used for fabric storage, chemical storage, pharmaceutical warehouses, raw material warehouses, finished warehouses ....

2- Medium duty Shelves:
Container loading medium is a type of rack, steel structure, bringing efficiency and economic benefits to the warehouse system that needs to load goods with small and medium loads, goods are many. Different sizes and types, sorting goods directly to the shelf by hand, forklift. Shelves for intermediate loads are suitable for loading cargoes from 100Kg to 600Kg for each store shelves, which can be used for warehousing and warehousing, storage of documents, storage for pharmaceuticals, Warehouse storage, material storage, spare parts warehouse, fabric storage ...
Manufactured from standard steel material, the cargo compartment is designed according to container requirements. This shelf is designed for versatility in cargo handling and easy to install, low-level adjustment. shelves, easy to move.

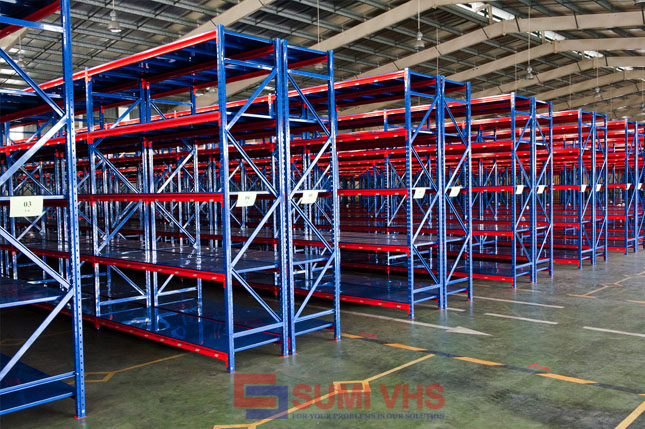

Medium duty Shelves

Characteristics of use:
• Hand-loading or hand-lift.
• Diverse in size.
• Load capacity: 100Kg-600Kg / 1 storey.
• The surface is designed as steel or wood surface according to customer needs.
• Standard steel stand.
• Contains many kinds of goods.
• Easy to remove and lower the shelves.

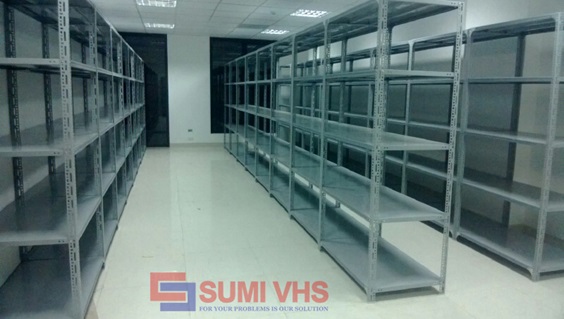

3- Light shelves:

On the market often called steel racks and multi-purpose racks, our multi-purpose racks are designed to be displayed in warehouses, in stores, in document storage, in supermarkets, Fashion clothing stores, or cargo warehouses with loads from 80 to 200 kg / 1 storey shelves. The shelves are designed to meet all modern needs: shelves for materials, furniture shelves, shelves for goods, shelves for grocery, shelves, shelves for materials ... Advantages With size is long, wide, high but variable by area of use. Multi-purpose shelf - White shelf dedicated display products. - Special color shelf for warehouses, shelves, shelves for archival documents. - Multi-purpose shelf is used for steel V holes and screws connected to the floor and the shelves, shelves have two types of wood and steel surface. - Steel surface covered with high-tech anti-rust coating. - The wood is made of natural wood with a thickness of 10 -18mm always ensure the firmness when used. So we have analyzed the specific design, features, load of three types of shelves shelf is commonly used in the warehouse today, help you identify and easily select the right product. with the actual needs used in his warehouse.
